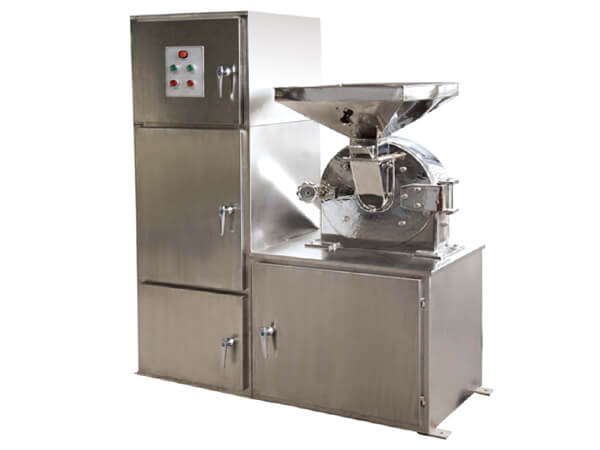

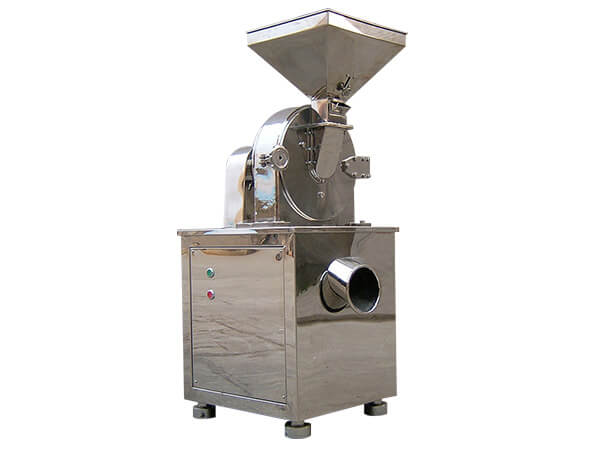

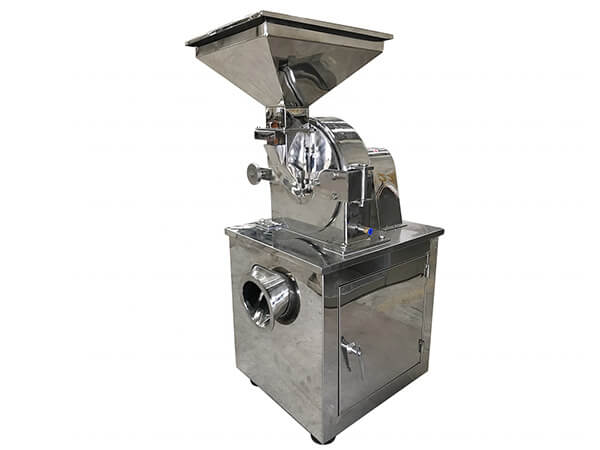

Pulverizer

Pulverizer is widely used for material crushing in the industries of pharmaceutics, chemical and foodstuff, etc.

Introduction

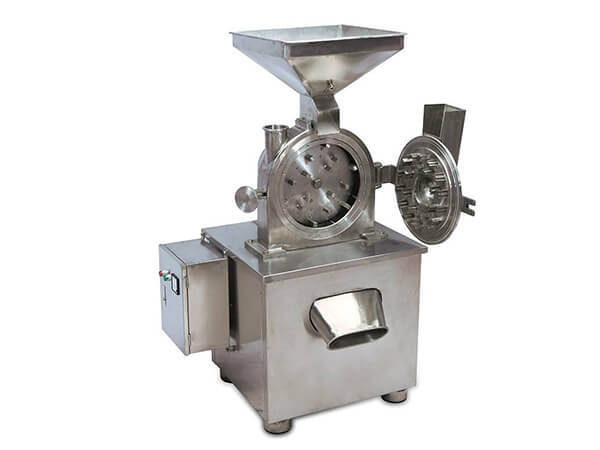

Pulverizer makes use of the high speed relative movement of the movable fluted disc and the fixed flued disc to crush the material. The inner surface of the enclosure becomes smooth through processing. As a result,the production of medicine,food and chemical products can better conform to the state standard and the GMP requirements. It has good effect for grinding food,chemicals.





Technical  Parameter

Model
KP -20
KP -30
KP -40
Capacity (kg/h)
20-150
30-300
40-500
Size of input granules (mm)
                                  less than 6
Size of output granules (mesh)
50-150
Power (kw)
3
4
7.5
Overall Dimension (L×W×H)(mm)
550×420×1088
770×750×1500
870×750×1708
Weight (kg)
300
400
600
