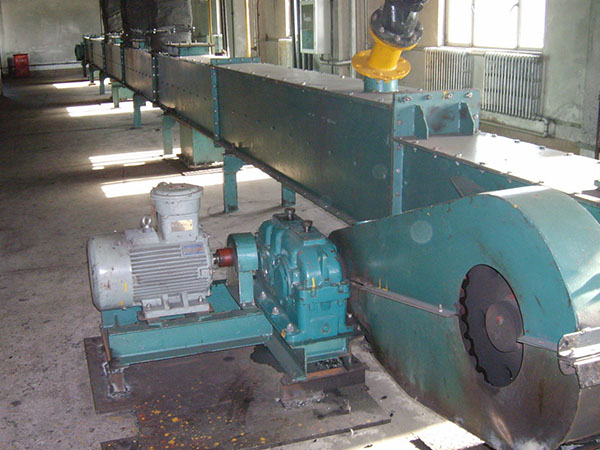

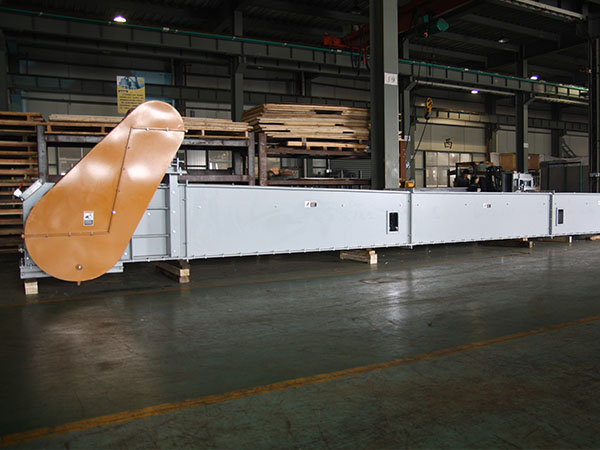

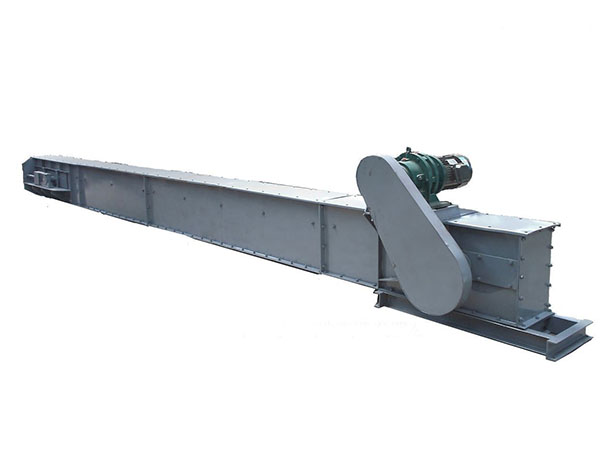

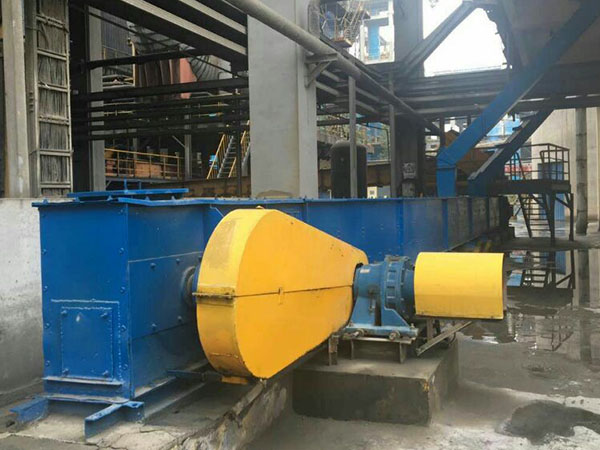

FU type chain conveyor

  1. The conveying capacity is large, up to 6m3/h~500 m3/h.
  2. The transmission energy consumption is low, with the internal friction of the material to push the material forward pulling force, 40-50% energy saving than the screw conveyor.
  3. Sealed and safe, fully sealed casing makes dust rarely spill.
  4. Long service life, specially ordered conveyor chain using high-quality steel and after

Description

FU type chain conveyor is a new product designed for horizontal (or inclined ≤15°) conveying powdery and small granular materials designed by our factory to absorb domestic and foreign experience. The product has novel structure, reasonable design, reliable operation, energy saving and high efficiency, and long service life, the whole material is transported in the sealed box: the dust is rarely spilled. The conveyor chain rolls on the track and wears less. Its use performance is obviously superior to screw conveyors in the form of powder and small granular materials. Other conveying machine such as buried scraper conveyors have been well received by users since they were put on the market. Has been widely used in building materials, chemicals, thermal power, food processing, mining and other industries.

Feature

  1. The conveying capacity is large, up to 6m3/h~500 m3/h.
  2. The transmission energy consumption is low, with the internal friction of the material to push the material forward pulling force, 40-50% energy saving than the screw conveyor.
  3. Sealed and safe, fully sealed casing makes dust rarely spill.
  4. Long service life, specially ordered conveyor chain using high-quality steel and after special heat treatment, the normal service life can reach more than 5 years.
  5. The process layout is flexible, can be more points into and out of the material.
  6. The series is complete, there are FU150, FU200, FU270, FU350, FU410, FU500 (the number indicates the width of the conveyor tank).

Basic transport form of chain conveyor

Representative conveying material

This product is suitable for conveying powdery, granular and small block materials, especially suitable for conveying the following materials (for reference) cement, yellow sand, limestone powder, coal powder, coke powder, wood chips, crushed ice, stone powder, urea, synthetic fertilizer, soda Powder, plastic granules, sulfur powder, resin, calcium powder, potassium sulfate, ammonium sulfide, graphite, clay powder, quartz sand, iron ore fines, crushed slag, wheat, salt, starch, cottonseed, rice, soybean, corn, etc.

Model Slot width(mm) Ideal granularity

(mm)

10%

Max

Granularity

(mm)

Max  angle Optimal delivery(M3/h) Material moisture (% water content)
Chain speed(m/min)
10 12 13.5 15 16 20 25
FU150 150 <4 <8









≤15

6-9 9-13 12-18 15-23 ≤5%
FU200 200 <5 <10 12-16 18-24 24-32 30-40
FU270 270 <7 <15 21-30 25-36 28-40 31-45 34-48 42-60 52-75
FU350 350 <9 <18 40-56 54-75



72-

100

90-

125

FU410 410 <11 <21 55-80 70-100



95-

130

105-

150

FU500 500 <13 <25 80-110 105-145



140-

200

160-

225

Technical Parameters

Material sharpening Extra large Large Middle Small
Chain speed(m/min) Recommend 10 15 20 30
Max 15 20 30 40

Optimum chain speed for conveying cement raw flour and finished cement products

Material Raw meal fine powder or

Finished cement

Clinker fine powder or

Finished cement

Raw meal or clinker

Coarse powder

Material temperature <60° 60-120℃ <60℃ 60-120℃
Optimum chain speed(mch/min) 15-20 10-13.5 10-12 10
Max ain speed(m/min) 25 15 13.5 12
