Bucket Elevator

  1. Easy maintenance and long service life. Casing box’s steel plate is thickened, rigidity is good.
  2. Excellent sealing, no environmental pollution.
  3. Stable lifting height, reliable operation, low noise.
  4. Compact installation arrangement, symmetrical weight distribution to prolong life of chain and driveshaft.
  5. Lifting height up to 40m.
CHAT INQUIRY

Introduction

Bucket elevator is one of the most effective machine to elevate bulk materials vertically. It consists of a series of lifting buckets attached to a belt or chain with pulleys or sprockets located at the top and bottom of the machine. The bucket will be filled with bulk materials when passing the feeding hole.

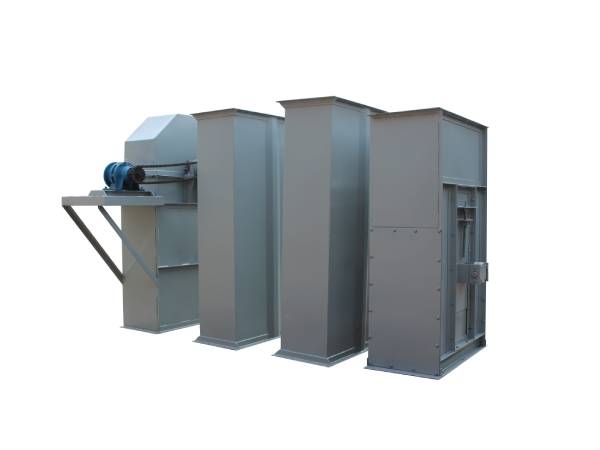

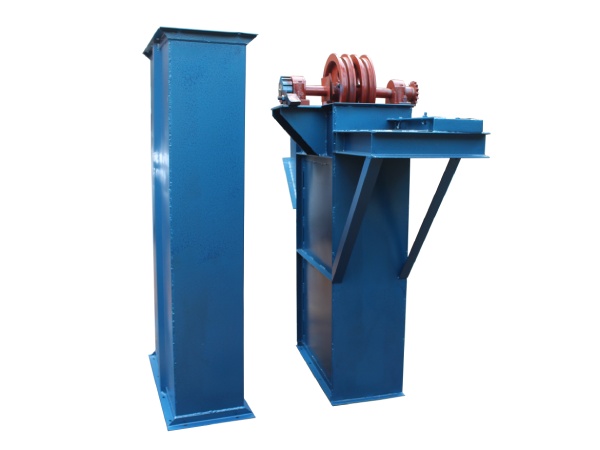

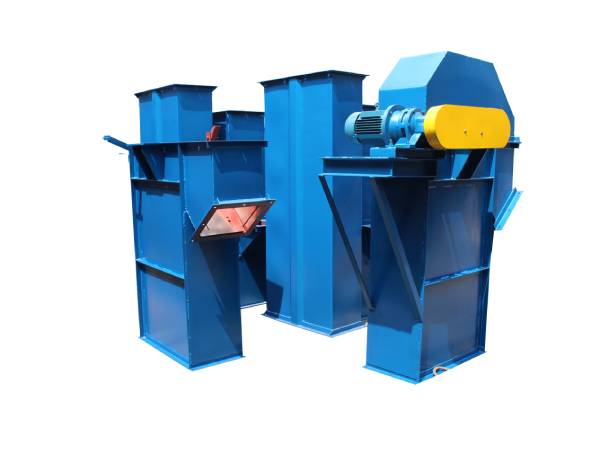

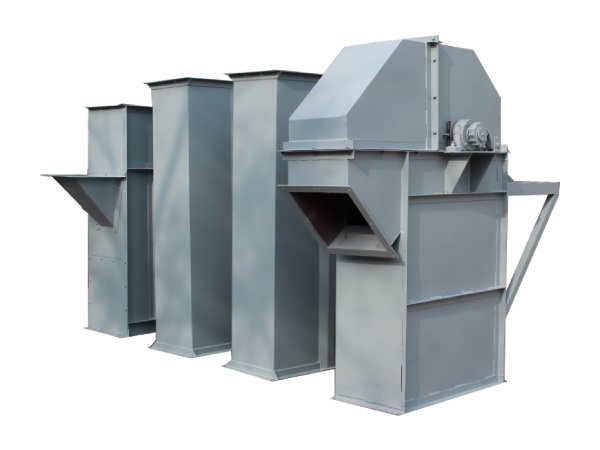

Bucket elevator

Advantages and Features

  1. Easy maintenance and long service life. Casing box’s steel plate is thickened, rigidity is good.
  2. Excellent sealing, no environmental pollution.
  3. Stable lifting height, reliable operation, low noise.
  4. Compact installation arrangement, symmetrical weight distribution to prolong life of chain and driveshaft.
  5. Lifting height up to 40m.

Technical data

Model TH160 TH200 TH250 TH315 TH400 TH500 TH630 TH800
Type of bucket Zh Sh Zh Sh Zh Sh Zh Sh Zh Sh Zh Sh Zh Sh Zh Sh
Capacity（m3/h） 8 12 13 22 16 28 21 36 36 56 45 70 68 110 87 141
Bucket width（mm） 260 200 250 315 400 500 630 800
Bucket volume（L) 1.2 1.9 2.1 3.2 3.0 4.6 3.75 6 5.9 9.5 9.3 15 14.6 23.6 23.3 37.6
Pitch of buckets（mm） 320 400 500 500 600 688 688 920
Chain type Φ8×30 Φ12×40 Φ18×50 Φ22×86 Φ26×92
Speed of bucket （m/s） 1.25 1.4

1.5



 1.6
·      Note: Q: Shallow round bottom type bucket, S: deep round bottom type bucket, Zh:middle deep bucket, Sh: deep bucket.
